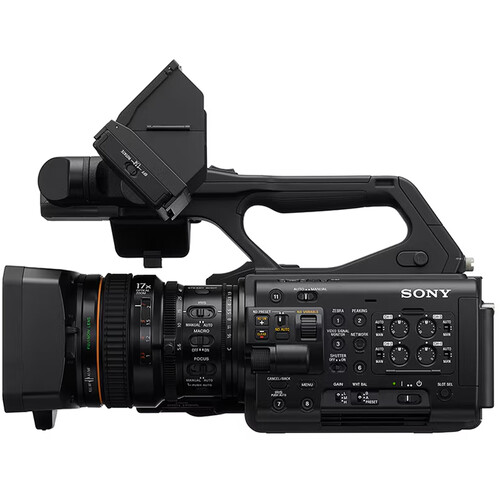

Sony PXW-Z300 3-CMOS XDCAM Camcorder
- High-Performance UHD 4K60 Capture Packed with broadcast-friendly features, Sony's PXW-Z300 3-CMOS XDCAM Camcorder uses a 3-CMOS 1/2"-type sensor to capture up to UHD 4K60 video. It features advanced AI autofocus, improved network functions, video authentication, a high-bright, touchscreen LCD side V-mount, flexible LCD arm, HEVC proxies, and SRT streaming.
Details
Sony PXW-Z300 Specs
Key Specs
| Image Sensor |
7.6 x 4 mm (1/2"-Type) 3-Chip CMOS |
| Sensor Resolution |
Actual: 12.2 Megapixel |
| Image Stabilization |
Optical in Integrated Lens |
| ISO/Gain Sensitivity |
Gain: -3 to 18 dB (-3 to 42 dB Extended) |
| Internal Recording |
MP4 Proxy/MXF/XAVC-I/XAVC-L |
| Video Output |
HDMI |
| Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SDXC |
| Video I/O |
1x BNC (12G-SDI) Output |
| Mobile App Compatible |
Yes: Android & iOS |
| Battery |
Sony BP-U Series |
Imaging
| Image Sensor |
7.6 x 4 mm (1/2"-Type) 3-Chip CMOS |
| Sensor Resolution |
Actual: 12.2 Megapixel |
| Image Stabilization |
Optical in Integrated Lens |
| Built-In ND Filter |
2 to 7 Stop Electronic ND Filter |
| Capture Type |
Video Only |
Exposure Control
| Shutter Type |
Electronic Rolling Shutter |
| Shutter Speed |
1/8000 to 64 Seconds |
| ISO/Gain Sensitivity |
Gain: -3 to 18 dB (-3 to 42 dB Extended) |
| Signal-to-Noise Ratio |
Not Specified by Manufacturer |
| Minimum Illumination |
0.0013 Lux at f/1.9 Aperture |
| White Balance |
Range: 2000 to 15,000K |
Lens
| Focal Length |
5.6 to 95.2mm (35mm Equivalent: 30.3 to 515mm) |
| Zoom |
17x Optical |
| Maximum Aperture |
f/1.9 |
| Minimum Aperture |
f/16 |
| Minimum Focus Distance |
From Front of Lens: 2" / 5 cm |
| Control Rings |
Focus |
Focus
| Focus Mode |
Automatic, Manual Focus |
Video Capture
| Internal Recording |
MP4 Proxy/MXF/XAVC-I/XAVC-L |
| Video Output |
HDMI |
| Broadcast Output |
NTSC |
| Fast-/Slow-Motion Support |
Yes |
| Interval Recording Modes |
Time-Lapse Video |
| Gamma Curve |
HDR-HLG, Rec709, Rec2020, S Cinetone, Sony S-Log 3 |
| Built-In Microphone |
Stereo |
| Audio Recording |
MP4, MXF, XAVC: 4-Channel |
| IP Streaming |
RTMP, RTMPS, SRT |
Interface
| Media/Memory Card Slot |
Dual Slot: CFexpress Type A / SDXC |
| Internal Storage |
No |
| Video I/O |
1x BNC (12G-SDI) Output |
| Audio I/O |
2x XLR 3-Pin Microphone Input |
| Power I/O |
1x USB-C (20VDC at 5 A) Input |
| Other I/O |
1x BNC (Timecode) Input/Output |
| Wireless |
Wi-Fi 5 (802.11ac) |
| Mobile App Compatible |
Yes: Android & iOS |
| Global Positioning (GPS, GLONASS, etc.) |
GPS |
Monitor
| Display Type |
Articulating 3.5" Touchscreen LCD |
| Resolution |
2,764,800 Dot |
Viewfinder
| Type |
Support via Video Out Only |
Power
| Battery |
Sony BP-U Series |
| Power Consumption |
≥48 W |
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C |
General
| Shoe Mount |
1x Cold Shoe |
| Tripod Mount |
1x 1/4"-20 Female |
| Accessory Mounting Thread |
2x 1/4"-20 |
| Built-In Video Light |
No |
| Dimensions (W x H x D) |
7.2 x 7.9 x 13.1" / 182.5 x 201.9 x 333.9 mm |
| Weight |
5.7 lb / 2.6 kg (Body Only) |
Packaging Info
| Package Weight |
9.47 lb |
| Box Dimensions (LxWxH) |
18.8 x 10.9 x 10.7" |
Items Included
- Sony PXW-Z300 3-CMOS XDCAM Camcorder
- Lens Hood
- Limited 1-Year Manufacturer Warranty
