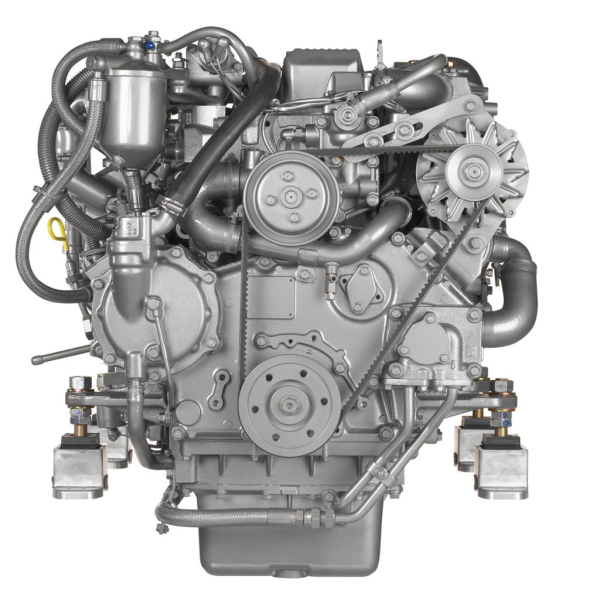

Yanmar 4LHA-HTP (Z) 160HP Inboard Diesel Engine
- LH Series 118–177kW (116–240HP) Tough, reliable, compact and with outstanding power-to-weight benefits, these four-cylinder direct injection Yanmars in the LH Series include sterndrive models. The turbocharger has a wastegate boost compensator to improve acceleration still further. LH Series 4LHAM-HTP (160HP/118kW) Turbocharged, direct injection four-cylinder diesel power with outstanding power to weight ratio. Supplied as bob-tail unit so that you can choose your transmission type.
Details
Specifications
Rated Output
118 kW / 160 mhp
Rated Speed
3300 rpm
Displacement
3.455 L / 211 cu. in
No. of cylinders
4 cylinders
Cylinder Bore x Stroke
100 mm x 110 mm / 3.94 in x 4.25 in
Combustion system
Direct Injection, VE Rotary Pump
Aspiration
Turbocharged & Intercooled
Alternator
12V - 80A
Dry weight without gear
342 kg / 754 lbs
Dimensions
1131 mm x 719 mm x 811 mm
Controls
Mechanical
Certifications
RCD 1 BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Dimensions include KMH50A gearbox and L-type elbow
(Dimensions may vary with other gears/elbow).
