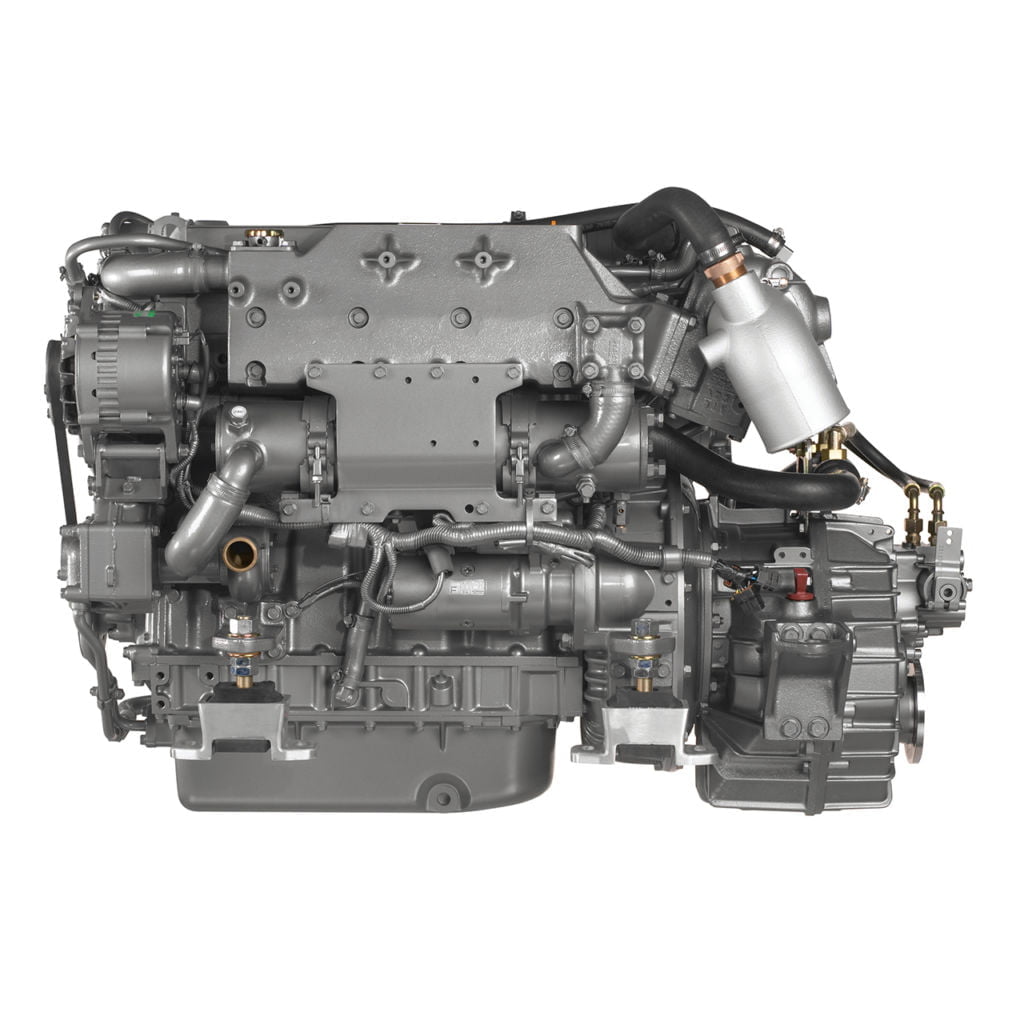

Yanmar 4LHA-STP (Z) 240hp Marine Diesel Inboard Engine
$ 3,500.00
- Yanmar 240hp inboard diesel is the 4LHA-STP, a 4-cylinder, 3.455L, turbocharged, direct-injection engine running at 3300 RPM, featuring high torque (around 630 Nm) and offering reliable power for various marine applications, known for its strong performance and compliance with emission standards like RCD and IMO Tier 2, with options for different transmissions and accessories.
Details
Key Specifications for Yanmar 4LHA-STP (240 HP):
- Power: 240 mhp (177 kW) at 3300 RPM
- Type: 4-stroke, vertical, water-cooled, 4-cylinder, direct injection
- Aspiration: Turbocharged & Intercooled
- Displacement: 3.455 Liters (211 cu. in.)
- Bore x Stroke: 100 mm x 110 mm (3.94 in x 4.33 in)
- Max Torque: Approx. 630 Nm (465 ft-lbs) at 2400-2600 RPM
- Weight (Dry w/ Gearbox): Around 409 kg (902 lbs)
- Electrical: 12V - 80A Alternator
- Dimensions (approx): 1131mm (L) x 719mm (W) x 811mm (H) (with gear)
- Certifications: RCD, BSO II, IMO Tier 2, EMC SOLAS
Performance & Features:
- Strong Torque: Delivers excellent low-end torque for responsive acceleration.
- Fuel Efficiency: Known for economical operation across various loads.
- Ease of Maintenance: Features large inspection windows and a cartridge-type oil filter.
- Technology: Utilizes direct injection for efficient fuel burn.
Common Gearbox Options:
- Yanmar KMH50A
- ZF 63A
